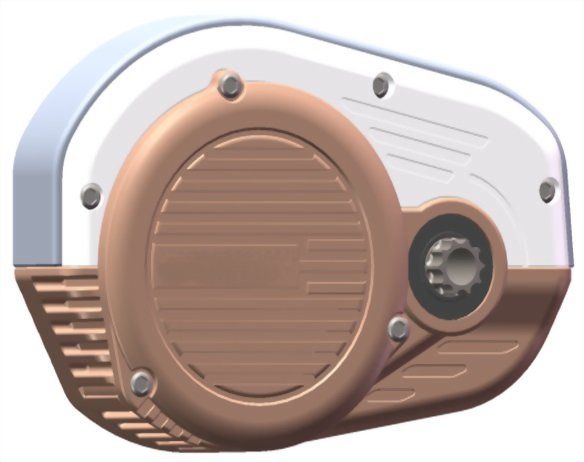

E-Bike Motor
Model :
EM-MM20 Max
| Specifications | |
| Model No. | EM-MM20 Max |
| Position | Motor Braket |
| Wheel Size (Inch) | 20 /22/ 24 / 26 / 700C / 28 |
| Chainwheel | 38T/42T/46T Varibable Speed Gear |
| Construction | Gear Drive |
| Rated Voltage (VDC) | 48/52/60 |
| Rated Power (W) | 750/1000/1500 |
| Controller | 36V@17A / 48V@20A Intelligent Controller |
| n0 (rpm) | 170 |
| nT (rpm) | 160 |
| Reduction Ratio | 1:19.5 |
| Max. Torque (N.m) | 175 |
| Efficiency (%) | ≧80 |
| Noise Grade (dB) | <55 |
| Operating Temperature | ‐20 – 45℃ |
| Weight (kg) | 5.8 |
| Color | Black |
| Manufacturing Location | Shanghai |
