E-Bike Motor
|
Specifications |
|
|
|
Model No. |

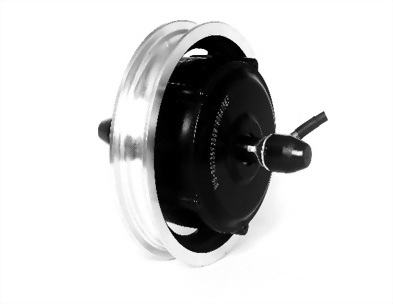

EM-M10 |

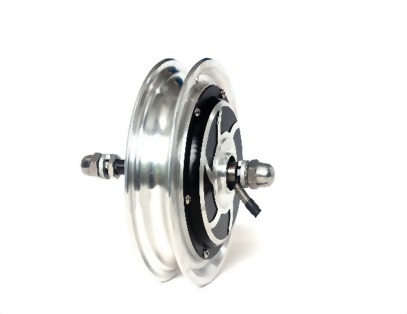

EM-M10-Z |
|
Position |
Front / Rear Motor |
|
|
Wheel Size (Inch) |
10 |
|
|
Construction |
Gear Drive |
Direct Drive |
|
Rated Voltage (VDC) |
24 /36 / 48 |
|
|
Rated Power (W) |
250/350 |
|
|
n0 (rpm) |
520 ; 220 |
|
|
nT (rpm) |
500; 200 |
|
|
Reduction Ratio |
NA |
NA |
|
Max. Torque (N.m) |
28 |
25 |
|
Efficiency (%) |
≧80 |
|
|
Noise Grade (dB) |
<50 |
|
|
Operating Temperature |
‐20 – 45℃ |
|
|
Weight (kg) |
2.8 |
|
|
Color |
Silver / Black |
|
|
Brake |
Disc Brake |
|
|
Housing Mounting |
Screw Mounting |
|
|
Installation Widths(mm/OLD) |
100/120 |
|
|
Max. Housing Diameter(mm) |
165 |
|
|
Cabling Route |
Through Shaft Side, Right |
|
|
Cable Length (mm), |
200, G9.1 |
|
|
Tests & Certifications |
IP65, CE/ROHS, |
|
|
Manufacturing Location |
Shanghai |
|
