E-Bike Motor

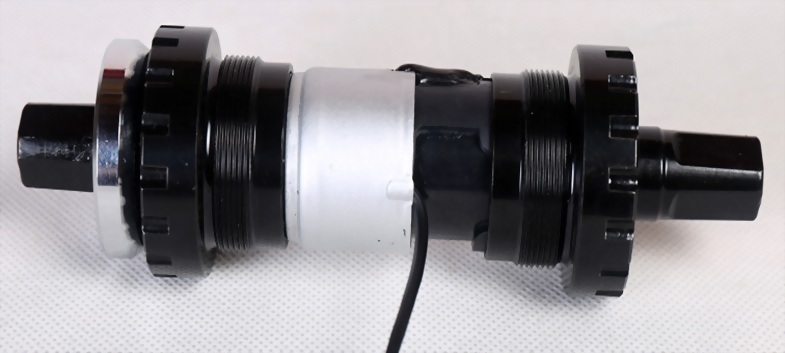

This sensor detects dual-pedal torque signals and speed signals accurately. It is featured by high sensitivity to pedal signals, long service life, simple maintenance, etc.
Model :
EM-BB-T2
|
Specifications |
|
|
Model No. |
EM-BB-T2 |
|
Mounting Position |
ChainWheel with Crank |
|
Input Voltage (VDC) |
4.2-5 |
|
Output Voltage (VDC) |
1-3.5 |
|
Operating Temperature |
‐20 – 45℃ |
|
Weight (kg) |
0.68 |
|
BB Width(mm) |
68/84/100/120 |
|
Speed Sensor Pulses |
30 |
|
Shaft Standard |
JIS |
|
Crank Length(mm) |
170 |
|
Tests & Certifications |
IP65, CE/ROHS, |
|
Manufacturing Location |
Shanghai |
