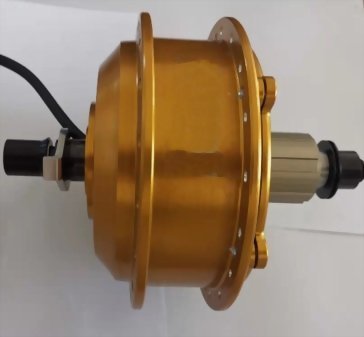

E-Bike Motor
|
Specifications |
|||
|
Model No. |
EM-M30CD-T |
||
|
Position |
Rear Motor |
Front Motor |
|
|
Wheel Size (Inch) |
20 / 24 / 26 / 700C / 28 |
||
|
Construction |
Gear Drive |
||
|
Rated Voltage (VDC) |
36 / 48 |
||
|
Rated Power (W) |
250W/350W |
||
|
n0 (rpm) |
360 ; 240 |
||
|
nT (rpm) |
330 ; 210 |
||
|
Reduction Ratio |
1:7.6 |
||
|
Max. Torque (N.m) |
32 |
||
|
Efficiency (%) |
≧80 |
||
|
Noise Grade (dB) |
<52 |
||
|
Operating Temperature |
‐20 – 45℃ |
||
|
Weight (kg) |
2.8 |
||
|
Color |
Silver / Black |
||
|
Brake |
Disc Brake |
||
|
Housing Mounting |
No Screw |
||
|
Installation Widths(mm/OLD) |
148 |
||
|
Max. Housing Diameter(mm) |
134 |
||
|
Gearshift |
Freewheel |
Cassette |
NA |
|
Cabling Route |
Through Shaft Side, left |
||
|
Cable Length (mm), |
250, G9.1 |
||
|
Spoke Specification |
36H*13G / 36H*12G |
||
|
Tests & Certifications |
IP 65, CE/ROHS, |
||
|
Manufacturing Location |
Shanghai |
||
