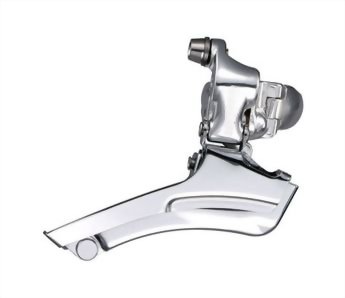

Road Bike Double Front Derailleur
for mini-frame or
short chainstay frame
short chainstay frame
Model :
FD-R74S (10 Speed)
| Model No. | FD-R74S-F | FD-R74S-B |
| Chain Ring | Double | |
| Cassette Compatibility | 10 | |
| Top Gear Teeth | 36-50T | |
| Capacity | 14T | |
| Route Type | Down Pull | |
| Chainstay Angle | 61-66 | |
| Mount Type | Brazed-on | Band |
| Chain Line | 45.0 mm | |
| Band Diameter | - | Φ34.9 / Φ31.8 (1) |
| Front Clamp Band | Aluminum cold forged silver | |
| Rear Clamp Band | Aluminum cold forged silver | |
| Outer Link | Aluminum cold forged silver | |
| Inner Link | Aluminum cold forged | |
| Chain Guide | Small size / Steel C.P | |
| Weight | 100g | 109g |
| Remarks | (1) -Clamp spacer (SM-R31) allow the derailleur to be Φ31.8mm frame tube. Without ring spacer the derailleur mounts to Φ34.9mm frame tube. | |
