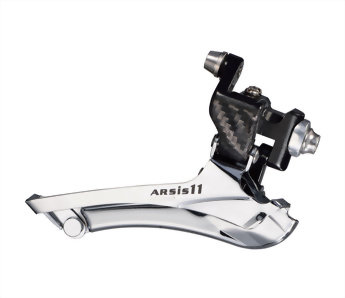

Road Bike Double Front Derailleur
ARSIS11
(Shimano Dura-Ace 9000,
Ultegra 6800 compatible)
(Shimano Dura-Ace 9000,
Ultegra 6800 compatible)
Model :
FD-R68 (11 Speed)
| Series |
|
|
| Model No. |
FD-R68-F |
FD-R68-B |
| Chain Ring | Double | |
| Cassette Compatibility | 11 Speed | |
| Top Gear Teeth | 50-56T | |
| Capacity | 16T | |
| Route Type | Down Pull | |
| Chainstay Angle | 61-66 | |
| Mount Type | Brazed-on | Band |
| Chain Line | 43.5mm | |
| Band Diameter | - | Φ34.9 / Φ31.8 (1) |
| Front Clamp Band | Aluminum cold forged / anodized | |
| Rear Clamp Band | Aluminum cold forged / anodized | |
| Outer Link | Aluminum cold forged / anodized / CNC machined | |
| Inner Link | Aluminum cold forged / anodized | |
| Chain Guide | Steel C.P. | |
| Weight | 97g | |
| Compatibility | Shimano Dura-Ace 9000, Ultegra 6800 compatible | |
| Remarks | (1) -Clamp spacer (Y-FDR06) allow the derailleur to be Φ31.8mm frame tube. Without ring spacer the derailleur mounts to Φ34.9mm frame tube. | |
