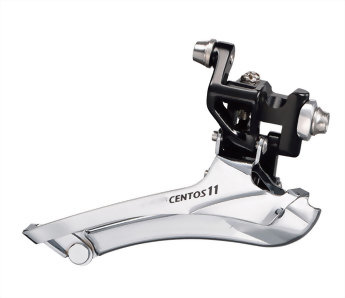

Road Bike Double Front Derailleur
CENTOS11
(Shimano Ultegra 6800,105 5800 compatible)
(Shimano Ultegra 6800,105 5800 compatible)
Model :
FD-R58 (11 Speed) White
| Series |
|
|
| Model No. | FD-R58-F | FD-R58-B |
| Chain Ring | Double | |
| Cassette Compatibility | 11 | |
| Top Gear Teeth | 50-56T | |
| Capacity | 16T | |
| Route Type | Down Pull | |
| Chainstay Angle | 61-66 | |
| Mount Type | Brazed-on | Band |
| Chain Line | 43.5mm | |
| Band Diameter | - | Φ34.9 / Φ31.8 (1) |
| Front Clamp Band | Aluminum cold forged | |
| Rear Clamp Band | Aluminum cold forged | |
| Outer Link | Aluminum cold forged | |
| Inner Link | Aluminum cold forged | |
| Chain Guide | Steel C.P._ "CENTOS11" | |
| Average Weight | 95g | 105g |
| Color Option | Black / White | |
| Compatibility | Shimano Ultegra 6800,105 5800 compatible | |
| Remarks | (1) -Clamp spacer (Y-FDR06) allow the derailleur to be Φ31.8mm frame tube. Without ring spacer the derailleur mounts to Φ34.9mm frame tube. | |
