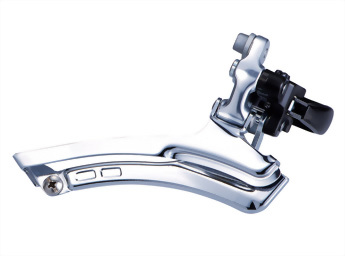

Road Bike Double Front Derailleur
CENTOS
(Shimano Tiagra 4700 compatible)
(Shimano Tiagra 4700 compatible)
Model :
FD-R552 (10 Speed)
| Series |
|
|
| Model No. | FD-R552B | FD-R552F |
| Chain Ring | Double | |
| Cassette Compatibility | 10 | |
| Top Gear Teeth | 50-56T | |
| Capacity | 16T | |
| Route Type | Down Pull | |
| Chainstay Angle | 61-66 | |
| Mount Type | Band | Brazed-on |
| Chain Line | 43.5mm | |
| Band Diameter | Φ34.9 / Φ31.8 (1) | - |
| Front Clamp Band | Aluminum | |
| Rear Clamp Band | Aluminum | |
| Outer Link | Aluminum | |
| Inner Link | Aluminum cold forged | |
| Chain Guide | Steel C.P | |
| Average Weight | 193g | 96g |
| Color Option | Black / Silver | |
| Compatibility | Shimano Tiagra 4700 compatible | |
| Remarks | (1) -Clamp spacer (Y-FDR06) allow the derailleur to be Φ31.8mm frame tube. Without ring spacer the derailleur mounts to Φ34.9mm frame tube. | |
