Bicycle front derailleur

MARVO LT / Clamp type
(Shimano MTB 9 speed system compatible)

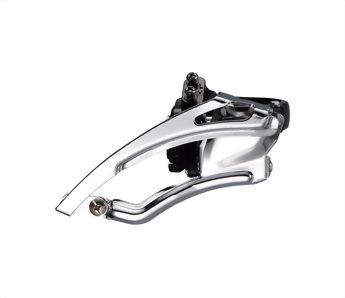

Model : FD-M43 (44/32/22T)

Series
Model No. FD-M43
Chain Ring Triple
Cassette Compatibility 9
Top Gear Teeth 44T-32T-22T
Capacity 22T
Route Type Dual Pull
Chainstay Angle 66-69
Mount Type Band
Chain Line 50.0mm
Band Diameter Φ34.9/ (1) (2)
Front Clamp Band Steel black
Rear Clamp Band Aluminum black
Outer Link Aluminum black
Inner Link Steel
Chain Guide Steel C.P.
Weight 150g
Remarks

(1) -Clamp spacer (Y-FDM03) allow the derailleur to be Φ31.8mm frame tube. Without ring spacer the derailleur mounts to Φ34.9mm frame tube.
(2) -Clamp spacer (Y-FDM04) allow the derailleur to be Φ28.6mm frame tube. Without ring spacer the derailleur mounts to Φ34.9mm frame tube.
