• Bicycle front derailleur

Bicycle front derailleur

MEZZO / Clamp type
(Shimano MTB 8/7 speed system compatible)

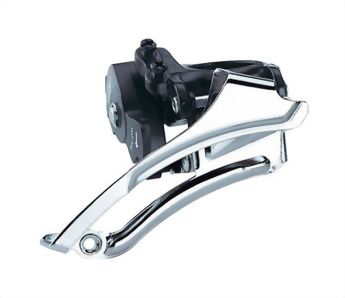

Model : FD-M20 (42/34/24T)

Model No. FD-M20
Chain Ring Triple
Cassette Compatibility 8 / 7 Speed
Top Gear Teeth 42T-34T-24T
Capacity 18T
Route Type Dual Pull
Chainstay Angle 66-69
Mount Type Band
Chain Line 50.0 / 47.5mm
Band Diameter Φ34.9/ (1) (2)
Front Clamp Band Steel
Rear Clamp Band Aluminum
Outer Link Aluminum
Inner Link Steel
Chain Guide Steel C.P.
Weight 145g
Remarks

(1) -Clamp spacer (Y-FDM03) allow the derailleur to be Φ31.8mm frame tube. Without ring spacer the derailleur mounts to Φ34.9mm frame tube.
(2) -Clamp spacer (Y-FDM04) allow the derailleur to be Φ28.6mm frame tube. Without ring spacer the derailleur mounts to Φ34.9mm frame tube.
