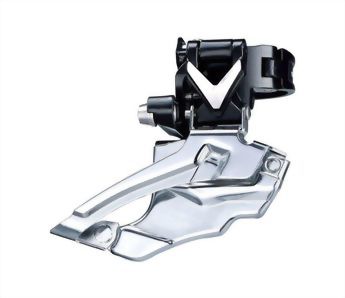

Bicycle front derailleur
XCD / Clamp type
(Shimano MTB 10 speed system compatible)
(Shimano MTB 10 speed system compatible)
Model :
FD-M853B (42/32/24T)
| Series |
|
| Model No. |
FD-M853B |
| Chain Ring |
Triple |
| Cassette Compatibility | 10 Speed |
| Top Gear Teeth | 42T-32T-24T |
| Capacity | 18T |
| Route Type | Dual Pull |
| Chainstay Angle | 66-69 |
| Mount Type | Band |
| Chain Line | 50.0mm |
| Band Diameter | Φ34.9 / Φ31.8 (1) |
| Front Clamp Band | Aluminum black |
| Rear Clamp Band | Aluminum black |
| Outer Link | Aluminum / black anodized / CNC Machined |
| Inner Link | Aluminum |
| Chain Guide | Steel C.P. |
| Weight | 161g |
| Remarks | (1) -Clamp spacer (SM-M31) allow the derailleur to be Φ31.8mm frame tube. Without ring spacer the derailleur mounts to Φ34.9mm frame tube. |
