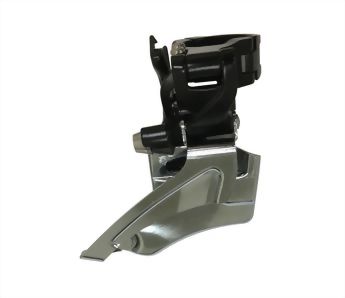

Bicycle front derailleur
Clamp type
(Shimano MTB 9 speed system compatible)
(Shimano MTB 9 speed system compatible)
Model :
FD-M462B (Double)
| Model No. |
FD-M462B |
| Chain Ring |
Double |
| Cassette Compatibility | 9 Speed |
| Top Gear Teeth | 42T-34T |
| Capacity | 10T-14T |
| Route Type | Dual Pull |
| Chainstay Angle | 66-69 |
| Mount Type | Band |
| Chain Line | 48.8mm |
| Band Diameter | Φ34.9 / Φ31.8 (1) |
| Front Clamp Band | Aluminum black |
| Rear Clamp Band | Aluminum black |
| Outer Link | Cold forged Aluminum |
| Inner Link | Aluminum |
| Chain Guide | Steel C.P. |
| Weight | 156g |
| Remarks | (1) -Clamp spacer (Y-FDM01) allow the derailleur to be Φ31.8mm frame tube. Without ring spacer the derailleur mounts to Φ34.9mm frame tube. |
