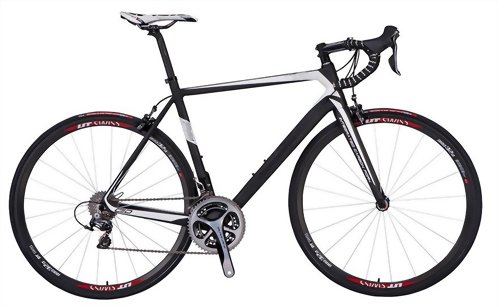

Road Bike
Model :
CB-RC006
MODEL CB-RC006 ROAD BIKE W/DURA-ACE DI2
FRAME CB-RC006 700C ROAD CARBON UD
FORK 700C ROAD CARBON UD
| HEADSET | FSA NO.44E/CF | |||
| CRANKSET | SHIMANO DURA-ACE 50x34T | |||
| BRAKES | SHIMANO DURA-ACE | |||
| WHEELS | SHIMANO WH-9000-C35-CL | |||
| TIRE | CONTINENTAL GRAND SPORT RACE 700C×25C | |||
| DERAILLEUR | SHIMANO DURA-ACE DI2 | |||
| SPROCKET | SHIMANO DURA-ACE 11-28T | |||
| FRAME SIZES | 45cm | 48cm | 51cm | 54cm | 57cm | 60cm | |
| A | SEAT TUBE | 450 | 480 | 510 | 540 | 570 | 600 |
| B | TOP TUBE | 525 | 525 | 530 | 555.7 | 570 | 590 |
| C | HEAD TUBE LENGTH | 90 | 90 | 120 | 155 | 190 | 220 |
| D | HEAD TUBE ANGLE | 72.5 | 72.5 | 73 | 73 | 73 | 73 |
| E | SEAT TUBE ANGLE | 75 | 75 | 75 | 73.5 | 73 | 73 |
| F | CHAIN STAYS LENGTH | 405 | 405 | 405 | 405 | 410 | 410 |
| G | WHEEL BASE | 968 | 968 | 971 | 981 | 997.7 | 1017.7 |
| H | STACK | 496 | 496 | 523.8 | 557 | 588 | 617 |
| I | REACH | 392 | 392 | 389.8 | 390.5 | 390 | 401 |
| J | STAND OVER HEIGHT(SH) | 707.8 | 722.7 | 753.9 | 782 | 814.8 | 839.6 |
| K | BOTTOM BRACKET DROP(BD) | 72.5 | 72.5 | 70 | 70 | 67.5 | 67.5 |
| L | FORK LENGTH(FO) | 367.3 | 367.3 | 367.3 | 367.3 | 367.3 | 367.3 |
