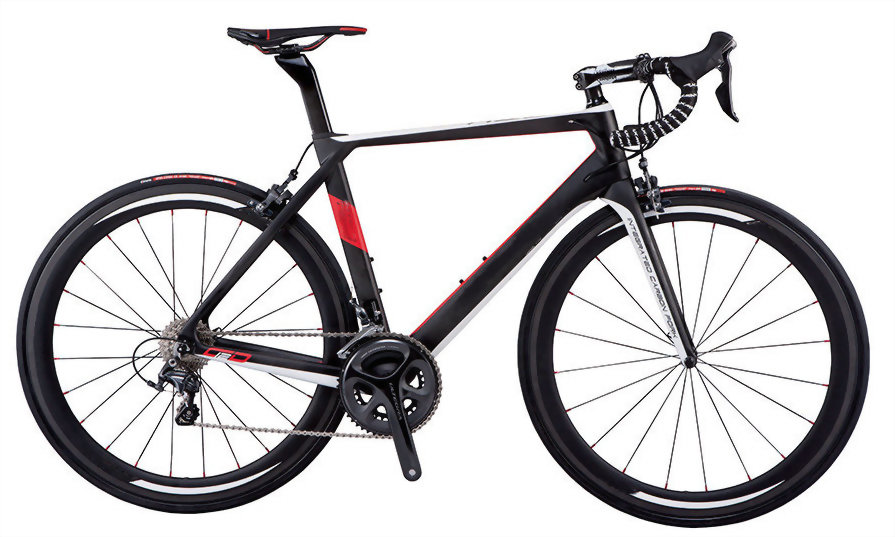

Road Bike
Model :
CB-RC003
MODEL CB-RC003 ROAD BIKE W/ULTEGRA
FRAME CB-RC003 700C ROAD CARBON UD
FORK 700C ROAD CARBON UD
| HEADSET | FSA NO.42/47-ACB | |||
| CRANKSET | SHIMANO ULTEGRA 50x34T | |||
| BRAKES | SHIMANO ULTEGRA | |||
| WHEELS | STEP 50T | |||
| TIRE | VITTORIA OPEN CORSA EVO CX 700Cx23C | |||
| DERAILLEUR | SHIMANO ULTEGRA | |||
| SPROCKET | SHIMANO ULTEGRA 11-28T | |||
| FRAME SIZES | 46cm | 48cm | 50cm | 52cm | 54cm | 56cm | |
| A | SEAT TUBE(ST) | 459 | 459 | 480 | 497.5 | 520 | 535 |
| B | TOP TUBE(TT) | 511 | 522.2 | 539.7 | 555.4 | 573.3 | 585 |
| C | HEAD TUBE LENGTH(HT) | 100 | 115 | 135 | 150 | 170 | 185 |
| D | HEAD TUBE ANGLE(HTA) | 71 | 72 | 72.5 | 73 | 73 | 73 |
| E | SEAT TUBE ANGLE(STA) | 75 | 74.5 | 74 | 73.5 | 73 | 73 |
| F | CHAIN STAYS(CS) | 405 | 405 | 405 | 405 | 405 | 405 |
| G | WHEEL BASE(WB) | 964.7 | 968.1 | 976.9 | 984.1 | 996.7 | 1008.4 |
| H | STACK(S) | 498.5 | 516 | 536.8 | 550.8 | 569.9 | 584.3 |
| I | REACH(R) | 372.8 | 379 | 385.8 | 392.2 | 399 | 406.4 |
| J | STAND OVER HEIGHT(SH) | 733 | 742.8 | 763 | 780.5 | 799.9 | 813.6 |
| K | BOTTOM BRACKET DROP(BD) | 70 | 70 | 70 | 68 | 68 | 68 |
| L | FORK LENGTH(FO) | 367 | 367 | 367 | 367 | 367 | 367 |
