• Bicycle front derailleur

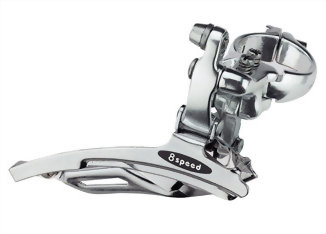

Bicycle front derailleur

Shimano 2303 compatible
Model : FD-R538 (52/42/30T) 8Speed

Model No. FD-R538-F FD-R538-B
Chain Ring Triple
Cassette Compatibility 8 Speed
Top Gear Teeth 52T-42T-30T
Capacity 22T
Route Type Down Pull
Chainstay Angle 63-66
Mount Type Brazed-on Band
Chain Line 45.0 mm
Band Diameter - Φ31.8 / Φ28.6(1)
Front Clamp Band Aluminum cold forged / anodized
Rear Clamp Band Aluminum cold forged / anodized
Outer Link Aluminum cold forged / anodized
Inner Link Aluminum cold forged
Chain Guide Steel C.P.
Weight 101g 111g
Remarks (1) -Clamp spacer (SM-R28) allow the derailleur to be Φ28.6mm frame tube. Without ring spacer the derailleur mounts to Φ31.8mm frame tube.
