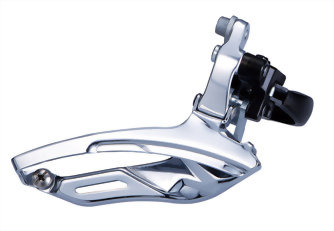

Road Bike Triple Front Derailleur
Shimano 2303 compatible
Model :
FD-R338(52/42/30T) 8 Speed
| Model No. |
FD-R338-F |
FD-R338-B |
| Chain Ring | Triple | |
| Cassette Compatibility | 8 Speed | |
| Top Gear Teeth | 52T-42T-30T | |
| Capacity | 22T | |
| Route Type | Down Pull | |
| Chainstay Angle | 63-66 | |
| Mount Type | Brazed-on | Band |
| Chain Line | 45.0 mm | |
| Band Diameter | - | Φ31.8 / Φ28.6(1) |
| Front Clamp Band | Steel | |
| Rear Clamp Band | Aluminum | |
| Outer Link | Cold forged aluminum / anodized | |
| Inner Link | Steel | |
| Chain Guide | Steel C.P. | |
| Weight | 115g | 125g |
| (1) -Clamp spacer (SM-R28) allow the derailleur to be Φ28.6mm frame tube. Without ring spacer the derailleur mounts to Φ31.8mm frame tube. | ||
