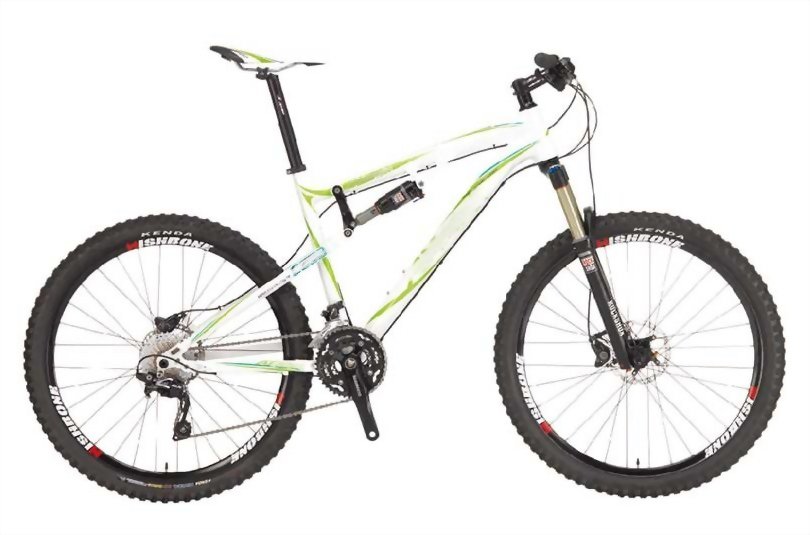

Full Suspension Bike
Model :
CB-FSA002
MODEL CB-FSA002 650B SUSPENSION BIKE W/DEORE
FRAME CB-FSA002 650B ALLOY SUSPENSION FRAME
FORK ROCKSHOX RECON GOLD 27.5 TAPERED
| HEADSET | FSA NO.57 | |||
| CRANKSET | SHIMANO DEORE 40X30X22T | |||
| BRAKES | SHIMANO DEORE | |||
| WHEELS | ALEX EVO 2.0 | |||
| TIRE | KENDA K-1010 650Bx2.35 | |||
| DERAILLEUR | SHIMANO DEORE | |||
| SPROCKET | SHIMANO CS-HG62-10 11-36T | |||
| FRAME SIZES | 15" | 17" | 19" | 21" | |
| A | SEAT TUBE(ST) | 381 | 432 | 483 | 533 |
| B | TOP TUBE(TT) | 560 | 580 | 600 | 620 |
| C | HEAD TUBE LENGTH(HT) | 120 | 120 | 130 | 145 |
| D | HEAD TUBE ANGLE(HTA) | 69 | 69 | 69 | 69 |
| E | SEAT TUBE ANGLE(STA) | 70.6 | 70.6 | 70.6 | 70.6 |
| F | CHAIN STAYS(CS) | 445 | 445 | 445 | 445 |
| G | WHEEL BASE(WB) | 1065.3 | 1085.3 | 1105.6 | 1126.1 |
| H | STACK(S) | 595.6 | 595.7 | 605 | 619 |
| I | REACH(R) | 350.8 | 370.7 | 387.5 | 402.6 |
| J | STAND OVER HEIGHT(SH) | 681.9 | 693.8 | 709.6 | 726.4 |
| K | BOTTOM BRACKET DROP(BD) | 5 | 5 | 5 | 5 |
| L | FORK LENGTH(FO) | 525 | 525 | 525 | 525 |
