• Bicycle Wheel Set

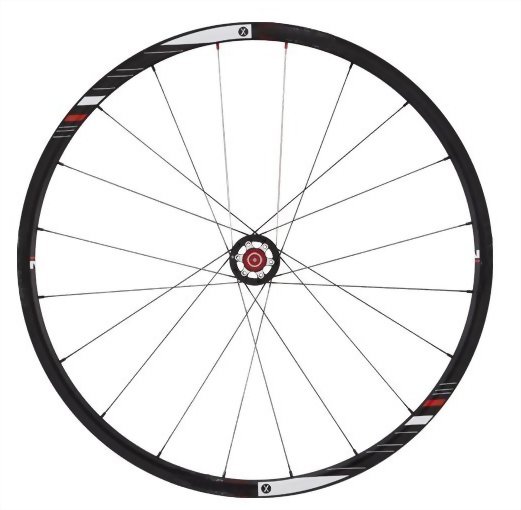

Bicycle Wheel Set

Model : WH-RA004

WH-RA004 wheelset combines the best of our road and offroad technologies.  A shallow, lightweight Tubeless Ready rim is mated to disc-ready hubs worthy of some real dirty abuse.

WH-RA004 Tubular Specs

CATEGORY

Tubular Road CX Disc

RIM TYPE/DEPTH

Alloy
24mm

ETRTO/ERD

632-24
589.2

RIM FINISH

BLACK MICRO PEEN

WEIGHT FRONT / REAR

1,425g

SPOKE COUNT F/R

20/24

SPOKES TYPE

Stainless Double Butted

SPOKES FRONT L/R (mm)

L:10×287
R:10×289

SPOKES REAR L/R (mm)

L:12×283
R:10×281

LACING FRONT/REAR

F:2X/2X
R:2X/2X

NIPPLE TYPE

Black / 2 Red
14mm Alloy

EYELETS / VALVE HOLE

NO
Ø6.5mm

HUBS

XD611SB
XD622SB

HUB FINISH

Black Ano. Polished

AXLE FRONT/REAR

AL 9x100x108
AL 10x130x140 or 10x135x145

CONVERTIBLE TO TUBELESS

CASSETTE (SHIM/SRAM/CAMPY)

UNIQUE 3in1, 8 / 9 / 10 / 11 S compatible

MATERIAL OF CASS.BODY/COMPATIBILITY

Alloy ABG [D2]

QUICK RELEASE

QR249














WH-RA004 Clincher Specs

CATEGORY

Clincher Road CX Disc

RIM TYPE/DEPTH

Alloy
21.8mm

ETRTO/ERD

622-17
589.2

RIM FINISH

BLACK MICRO PEEN

WEIGHT FRONT / REAR

1,465g

SPOKE COUNT F/R

20/24

SPOKES TYPE

Stainless Double Butted

SPOKES FRONT L/R (mm)

L:10×287
R:10×289

SPOKES REAR L/R (mm)

L:12×283
R:10×281

LACING FRONT/REAR

F:2X/2X
R:2X/2X

NIPPLE TYPE

Black / 2 Red
14mm Alloy

EYELETS / VALVE HOLE

NO
Ø6.5mm

HUBS

XD611SB
XD622SB

HUB FINISH

Black Ano. Polished

AXLE FRONT/REAR

AL 9x100x108
AL 10x130x140 or 10x135x145

CONVERTIBLE TO TUBELESS

Tubeless Ready

CASSETTE (SHIM/SRAM/CAMPY)

UNIQUE 3in1, 8 / 9 / 10 / 11 S compatible

MATERIAL OF CASS.BODY/COMPATIBILITY

Alloy ABG [D2]

QUICK RELEASE

QR249



• 700c alloy rims are specfically designed for use with disc brakes – no wasted material

• Off-road worthy disc brake compatible hubs

• Oversized rear hub axle is light and stiff

• Unique 3-in-1 rear hub is readily compatible with Shimano, SRAM and Campy
