• Bicycle Wheel Set

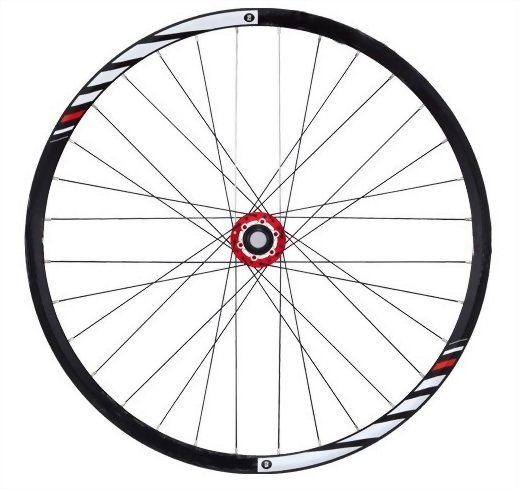

Bicycle Wheel Set

Model : WH-MA003

They’re called WH-MA003 but they’re equally at home in a ramp park or set of dirt jumps. Our most bomber configuration, these wheels are built for the sole purpose of taking all of life’s agressions. They’ll take a beating and ask for more.

CATEGORY

MTB DISC Dirt Jump

RIM TYPE/DEPTH

Clincher Alloy
22*30.8mm

ETRTO/ERD

559-25
528.7m

RIM FINISH

BLACK MICRO PEEN

WEIGHT FRONT / REAR

935g
1145g

SPOKE COUNT F/R

32/32
J-Hook

SPOKES TYPE

Stainless Double Butted

SPOKES FRONT L/R (mm)

L:18×255
R:18×257

SPOKES REAR L/R (mm)

L:18×257
R:18×257

LACING FRONT/REAR

F: 3X
R: 3X

NIPPLE TYPE

Stainless New L.S./Polyax
14mm Brass

EYELETS / VALVE HOLE

NO
Ø8.7mm

HUBS

XD641SB-20
XD252SBT-BI-AA

HUB FINISH

Red Ano. Polish

AXLE FRONT/REAR

20/15×110 Thru (2in1)
AL M10x135

CONVERTIBLE TO TUBELESS

Tubeless Ready

CASSETTE (SHIM/SRAM/CAMPY)

BMX

MATERIAL OF CASS.BODY/COMPATIBILITY

Alloy
4pawls

QUICK RELEASE

INCLUDED ACCESSORIES

Side Caps:
F: 15,20
R: Alloy Sprocket





Specs

CATEGORY

MTB DISC Dirt Jump

RIM TYPE/DEPTH

Clincher Alloy
22*30.8mm

ETRTO/ERD

559-25
528.7m

RIM FINISH

BLACK MICRO PEEN

WEIGHT FRONT / REAR

957g
1168g

SPOKE COUNT F/R

36/36
J-Hook

SPOKES TYPE

Stainless Double Butted

SPOKES FRONT L/R (mm)

L:18×252
R:18×254

SPOKES REAR L/R (mm)

L:18×254
R:18×254

LACING FRONT/REAR

F: 3X
R: 3X

NIPPLE TYPE

Stainless New L.S./Polyax
14mm Brass

EYELETS / VALVE HOLE

NO
Ø8.7mm

HUBS

XD641SB-20
XD252SBT-BI-AA

HUB FINISH

Red Ano. Polish

AXLE FRONT/REAR

20/15×110 Thru (2in1)
AL M10x135

CONVERTIBLE TO TUBELESS

Tubeless Ready

CASSETTE (SHIM/SRAM/CAMPY)

BMX

MATERIAL OF CASS.BODY/COMPATIBILITY

Alloy
4pawls

QUICK RELEASE

INCLUDED ACCESSORIES

Side Caps:
F: 15,20
R: Alloy Sprocket



• The same proven rim found on WH-MA002 models

• Tubeless Ready rim cross section

• Rear hub uses a hardened steel axle with threaded axle bolts, ready for maximum abuse

• Available in 32 hole or 36 hole spoke counts
