Bicycle front derailleur
(52/42/30T)
for 20 inch frame
for 20 inch frame

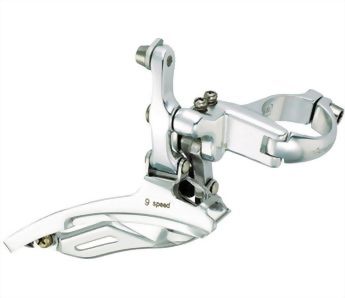

Model :
FD-R439H 9Speed
| Model No. | FD-R439H-B |
| Chain Ring | Triple |
| Cassette Compatibility | 9 Speed |
| Gear Teeth | 52T-42T-30T |
| Capacity | 22T |
| Route Type | Down Pull |
| Chainstay Angle | 72-75 |
| Mount Type | Band |
| Chain Line | 45.0 mm |
| Band Diameter | Φ31.8 / Φ28.6 (1) |
| Front Clamp Band | Aluminum cold forged |
| Rear Clamp Band | Aluminum cold forged |
| Outer Link | Aluminum cold forged |
| Inner Link | Aluminum cold forged |
| Chain Guide | Steel C.P. |
| Weight | 124g |
| Remarks | (1) -Clamp spacer (SM-R28) allow the derailleur to be Φ28.6mm frame tube. Without ring spacer the derailleur mounts to Φ31.8mm frame tube. |
